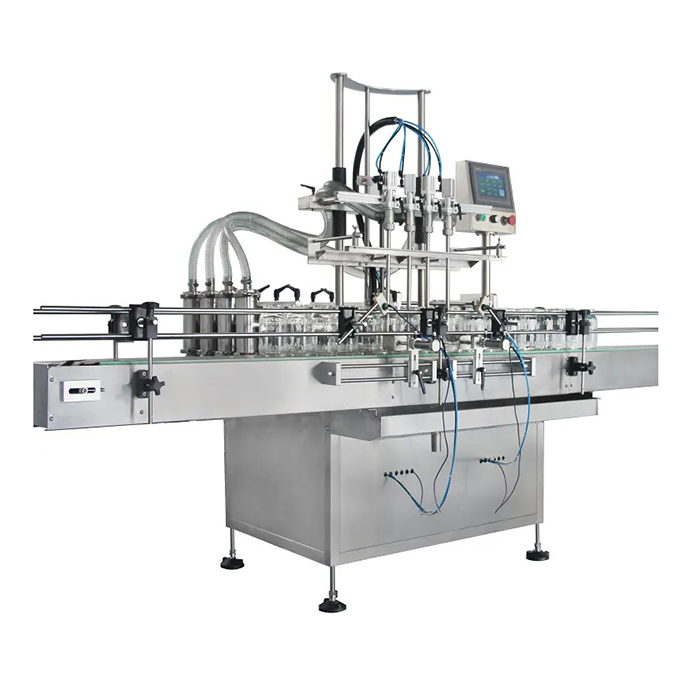

4 سرونه د اتومات مايع بوتل ډکولو ماشین

کور / د ډکولو ماشینونه / د بوتل ډکولو ماشین / 4 سرونه د اتومات مايع بوتل ډکولو ماشین

4 سرونه د اتومات مايع بوتل ډکولو ماشین

غوښتنلیکونه:


4 Heads Automatic Liquid Bottle Filling Machine is suitable to the material: coating agent, suspension agent, edible oil, lubricating oil and water agent etc.

اصل او ب featureه:


The machine is a ram filler, it using the PLC programmable control, equipping with tonching screen person-machine interface system, realizing automatic filling, automatic capping. it is suit for the different bottles and caps, only make some adjustment .

ځانګړتیا:

1. SS316L piston pump fills high precision suitable for oral liquid and light liquid with viscosity.

2. This machine is compact design, streamline bottle conveying, more stable.

3. No bottle no fill function.

4. Auto frequency conversion adjusting speed.

5. Auto display and count.

6. Rolling sealer uses single flexible knife with 12 rolling heads, one machine can auto entry, filling, adding cap, and sealing smoothly.

7. One machine can auto entry, filling adding capper, and sealing.

8. The whole machine is designed according to the requirements of GMP.

اصلي تخنیکي مشخصات


د ډکولو سرونو شمیرheads سرونه
د مړو شمیرو شمیریو سر
د ډکولو حد20 ~ 1000ml
د کامل حد20-100ML \ 50-250ML \ 100-500ML \ 200ML-1000ML
د پوښ انتخابد برګر پروف ، سکرو پوښ ، ROPP المونیم پوښ
د تولید ظرفیت2400 ~ 3000 (بوتلونه / ساعت)
دقیقه اندازه کول±. 1
د وړتیا کچه≥≥.
ځواک220V 50 / 60Hz
ټول ځواک≤1.2kw
د هوا فشار0.4 ~ 0.6MPa
وزن
800 کلو
بهرني ابعاد (ملي میتر)2000 × 1200 × 1600

ژر توضیحات


ډول: د ډکولو ماشین
حالت: نوی
غوښتنلیک: څښاک ، کیمیکل ، طبي
د بسته کولو ډول: بوتلونه
اتومات رتبه: اتومات
د چلولو ډول: بریښنا
ولټاژ: 220V / 110V 50 / 60Hz
بریښنا: ≤1.2KW
د اصلي ځای: شانګهای ، چین (مینلینډ)
د نښه نوم: NPACK
ابعاد (L * W * H): 2000 * 1200 * 1600mm
وزن: 800kg
سند: GMP
د پلور وروسته خدمت چمتو شوی: انجینران په بهر کې د خدماتو ماشین ته شتون لري
د محصول نوم: د مایع بوتل ډکولو ماشین
د ډکولو حد: 20 ~ 1000ML
د سمال حد: 20-100ML \ 50-250ML \ 100-500ML \ 200ML-1000ML
د تولید ظرفیت: 2400 ~ 3000 (بوتلونه / ساعت)
دقیقه اندازه کول: ± ≤ 1
د شراکت کچه: ≥≥
The choice of cover: Burglarproof cover, screw cover


A 4 heads automatic liquid bottle filling machine is a piece of equipment designed to fill bottles with liquids such as water, juice, oil, and other fluids. This machine works by accurately measuring and dispensing the required amount of liquid into the bottle through four filling heads that work simultaneously. The machine is fully automated, which makes the process faster, efficient, and less labor-intensive.

The 4 heads automatic liquid bottle filling machine is designed to handle a range of bottle sizes and shapes, making it versatile and ideal for use in a variety of industries. The machine can also fill different types of liquids, which makes it a suitable option for use in industries such as food and beverage, pharmaceuticals, and cosmetics.

The machine is easy to operate and has a user-friendly interface that allows for easy setup and programming of the filling parameters. The parameters can be customized to suit the specific needs of the product being filled, such as filling volumes and speeds.

The filling process is accurate and consistent, which helps to maintain the quality of the product being filled. The machine can also be integrated with a capping or labeling machine, which further streamlines the packaging process and increases efficiency.

In conclusion, a 4 heads automatic liquid bottle filling machine is an essential piece of equipment for any business that produces and bottles liquid products. It provides a fast, efficient, and accurate way of filling bottles with liquid products, which helps to increase productivity and reduce costs. The machine is customizable and can handle a range of bottle sizes and types, making it versatile and suitable for use in various industries.
